How to test Agent Authorisation API?

Prerequisites

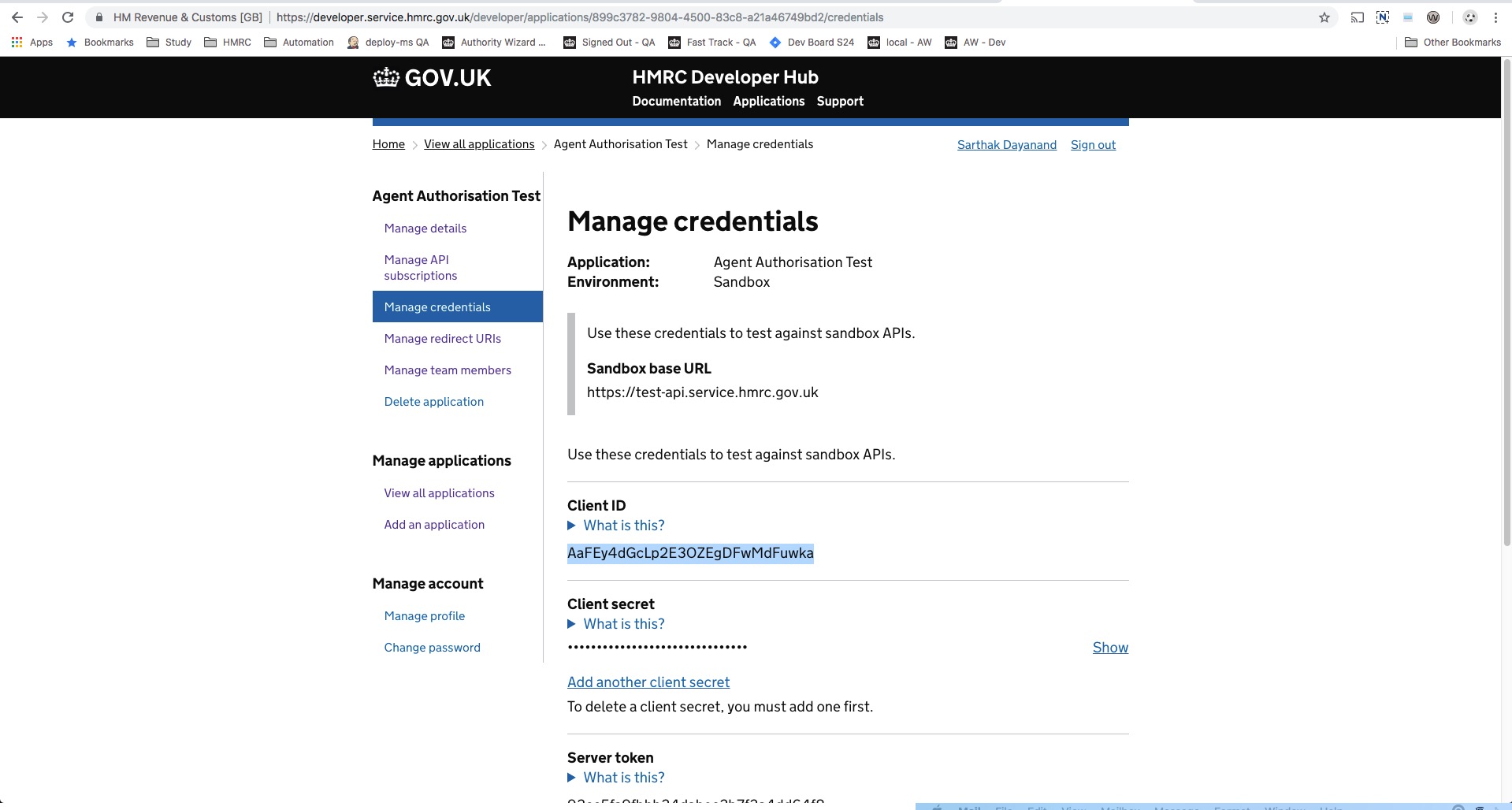

Login to API developer hub and create a sandbox application
Make note of your clientID from API developer Hub.

Create a client on Agent Stubs

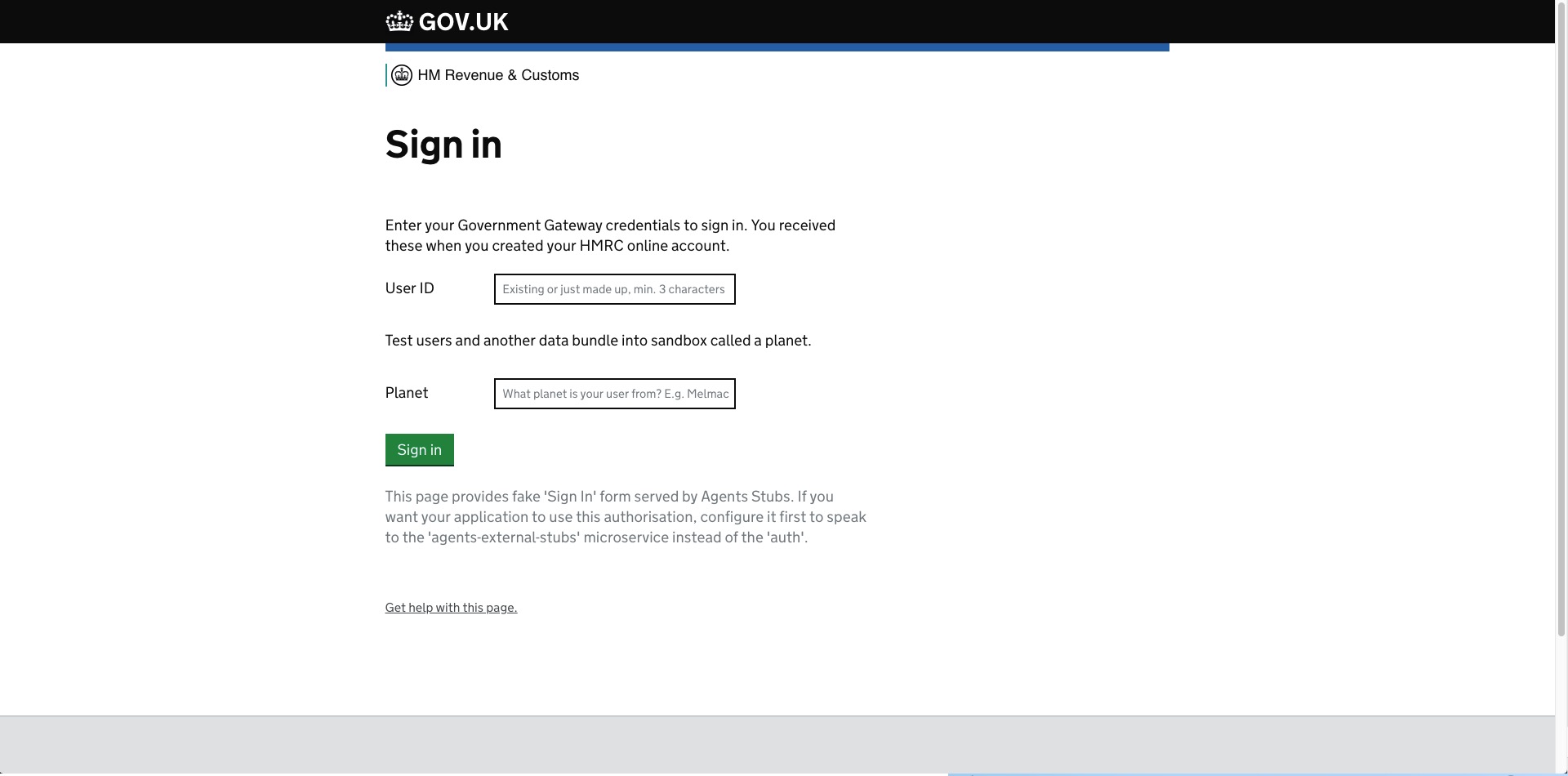

Navigate to agents stubs UI https://test-www.tax.service.gov.uk/agents-external-stubs/gg/sign-in

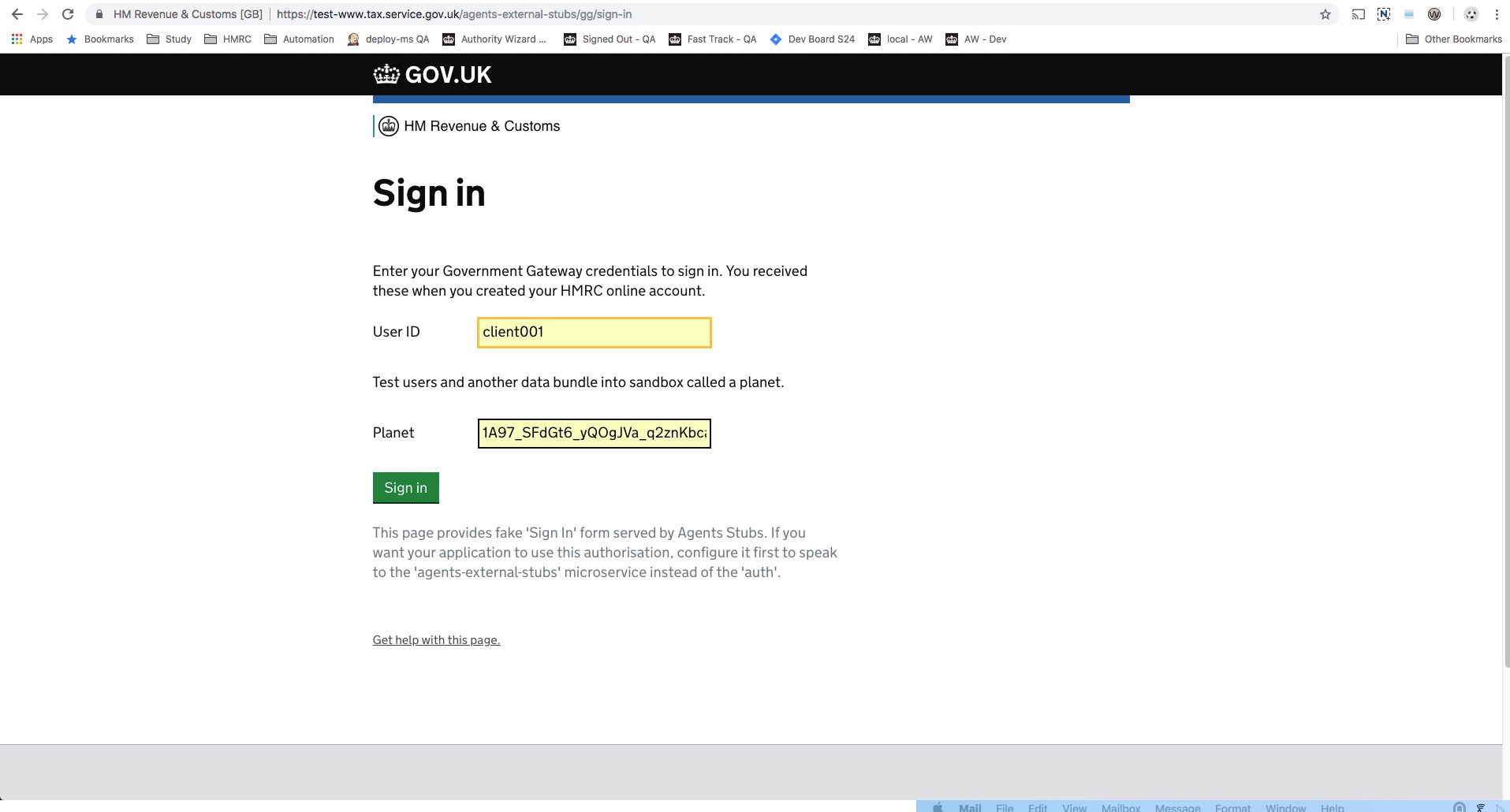

Sign in with any UserID and use hmrc as Planet

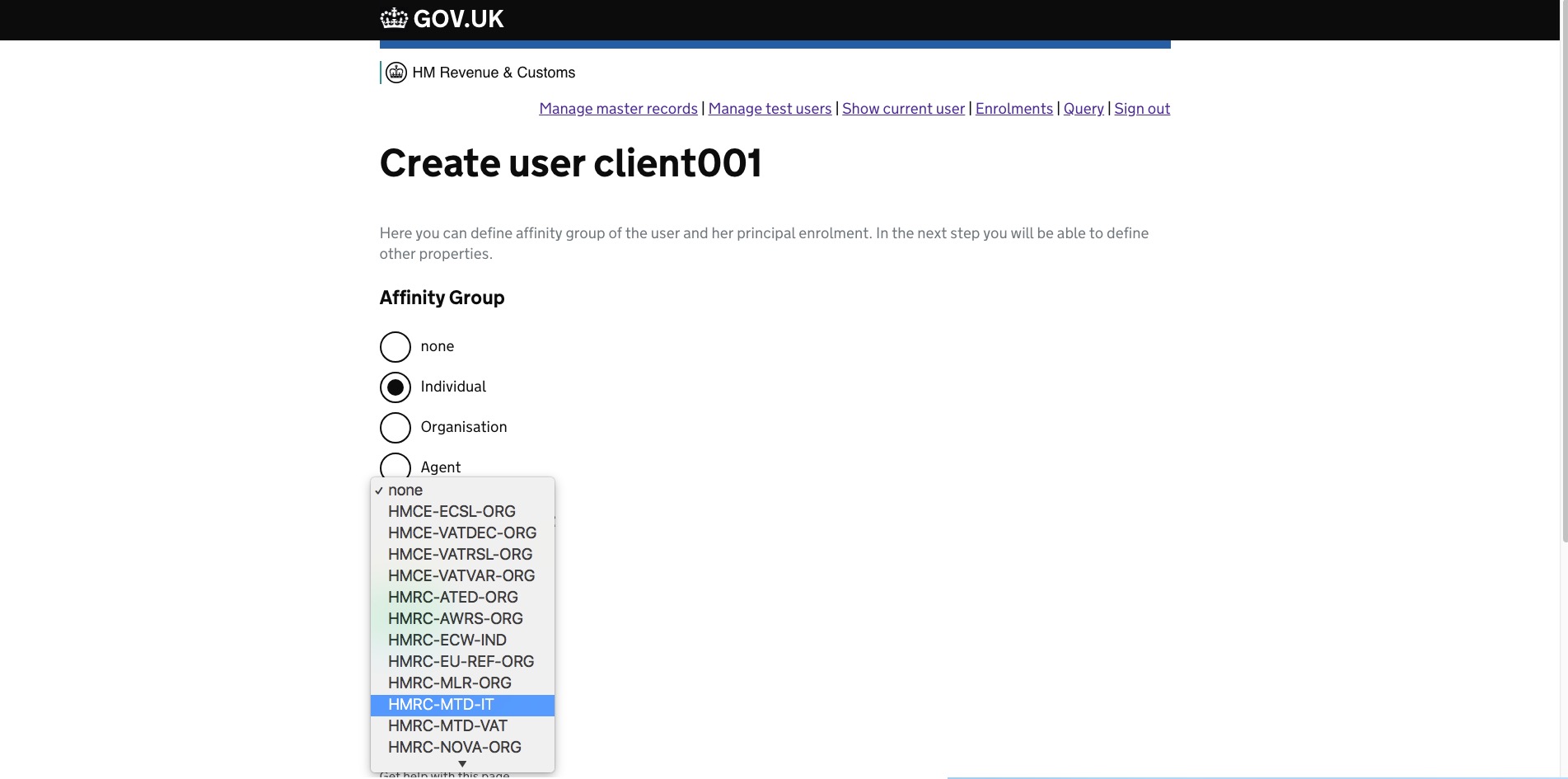

Select Affinity Group as Individual
Select Principal enrolment as HMRC-MTD-IT
Click Create and Continue

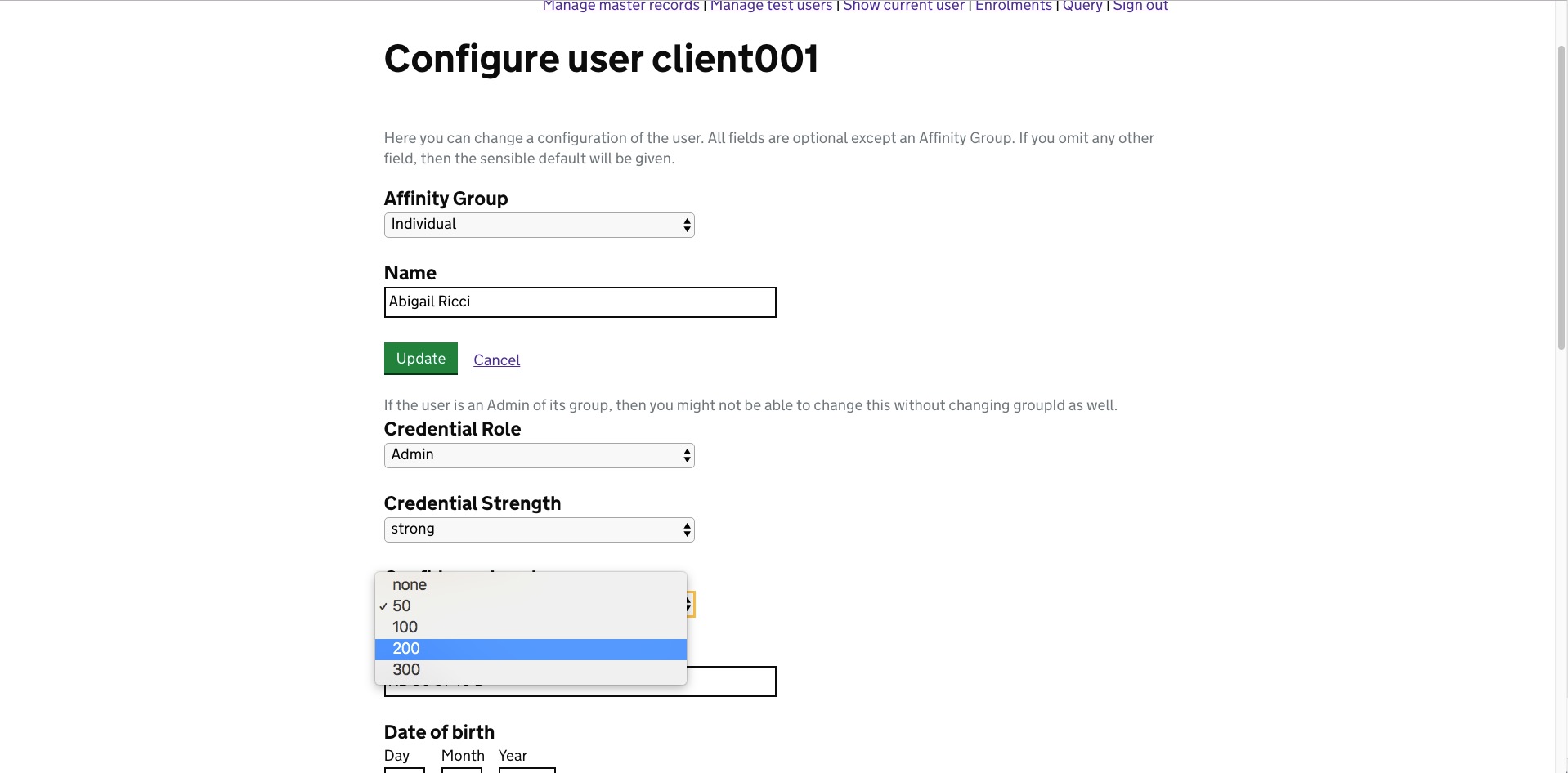

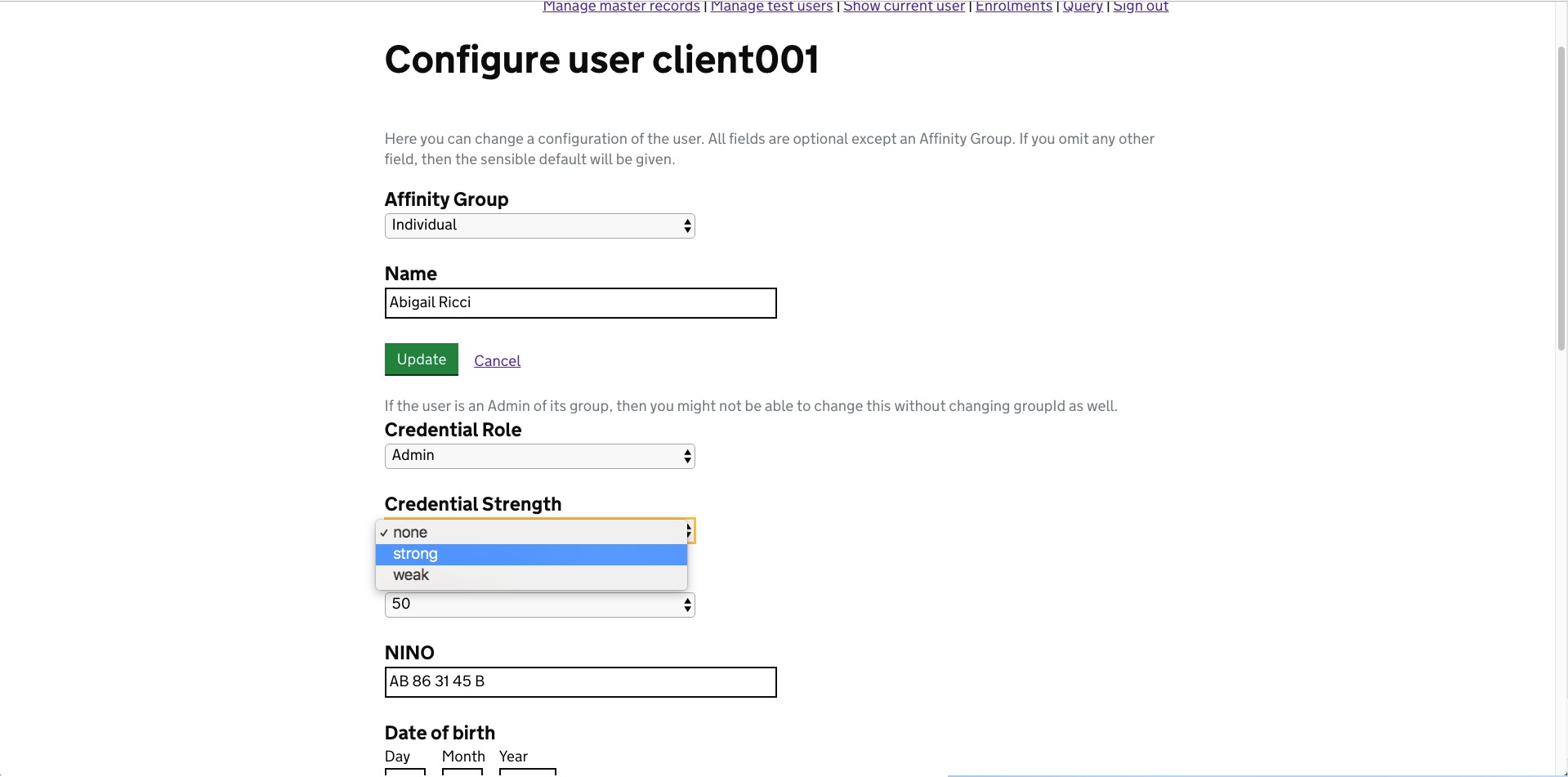

Change Credential Strength to Strong
Change Confidence Level to 200
If you need MTD-VAT enrolment for the same client, add new Principal Enrolment as HMRC-MTD-VAT
Click Update

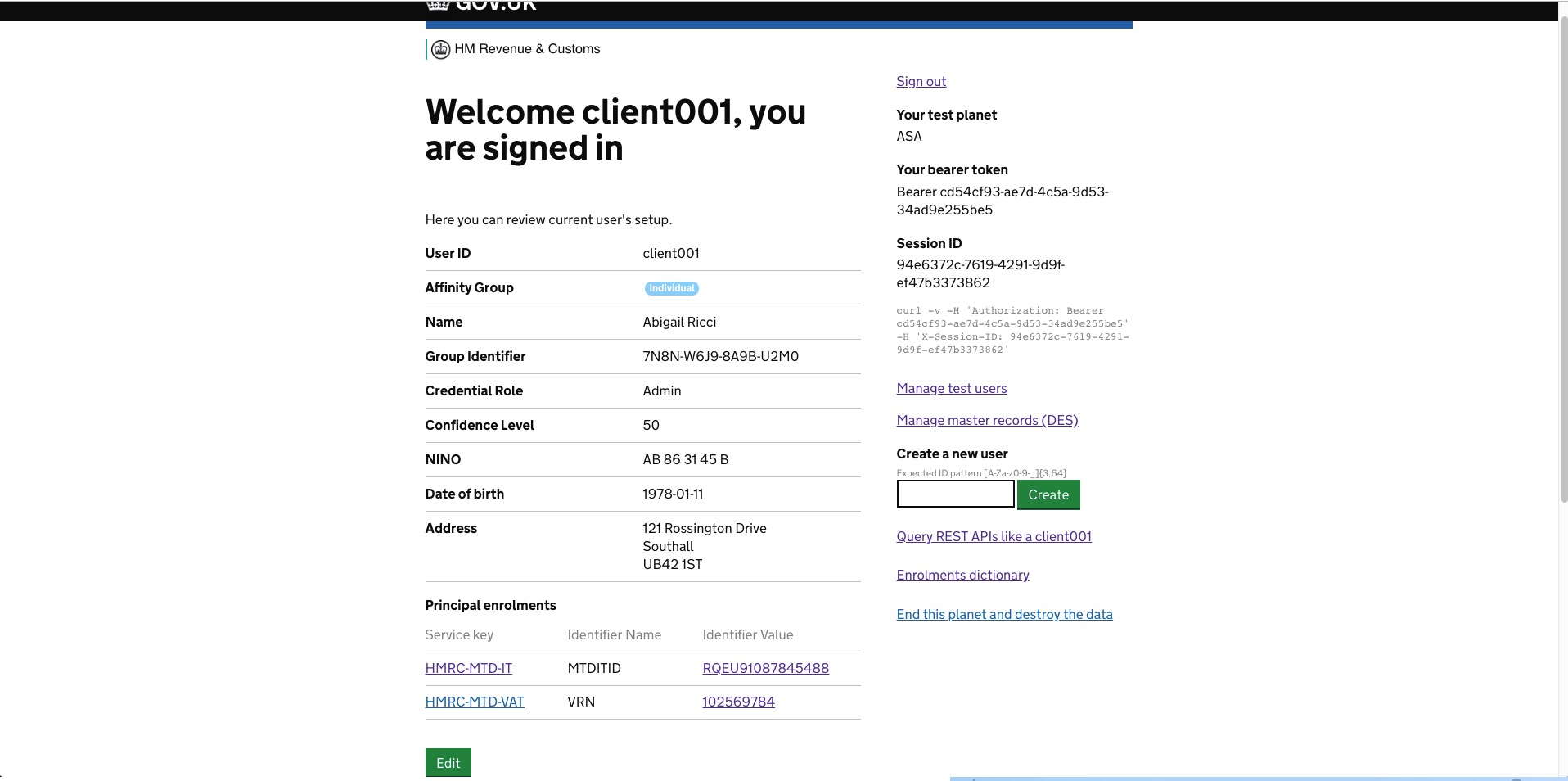

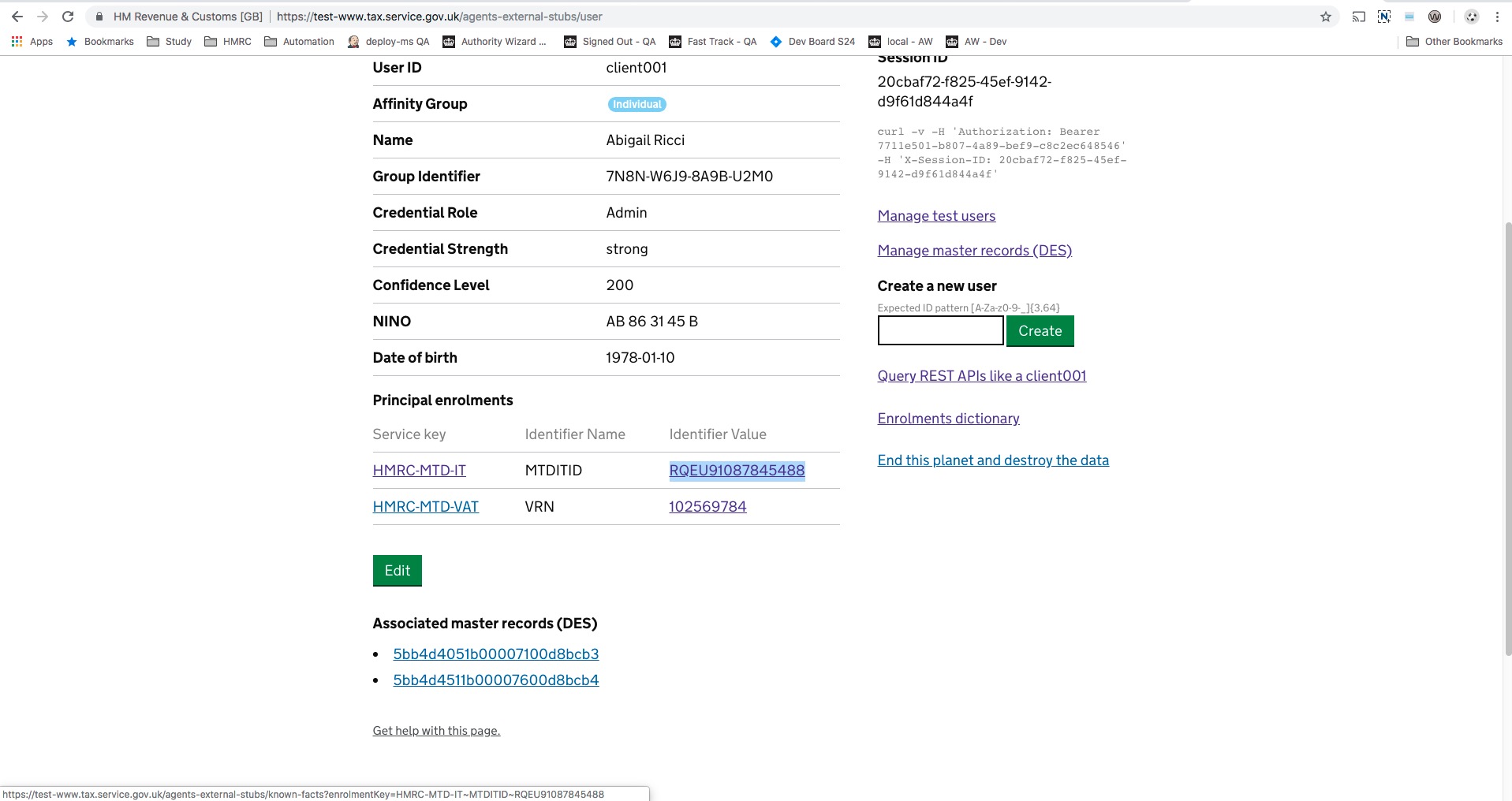

client001 home page is displayed

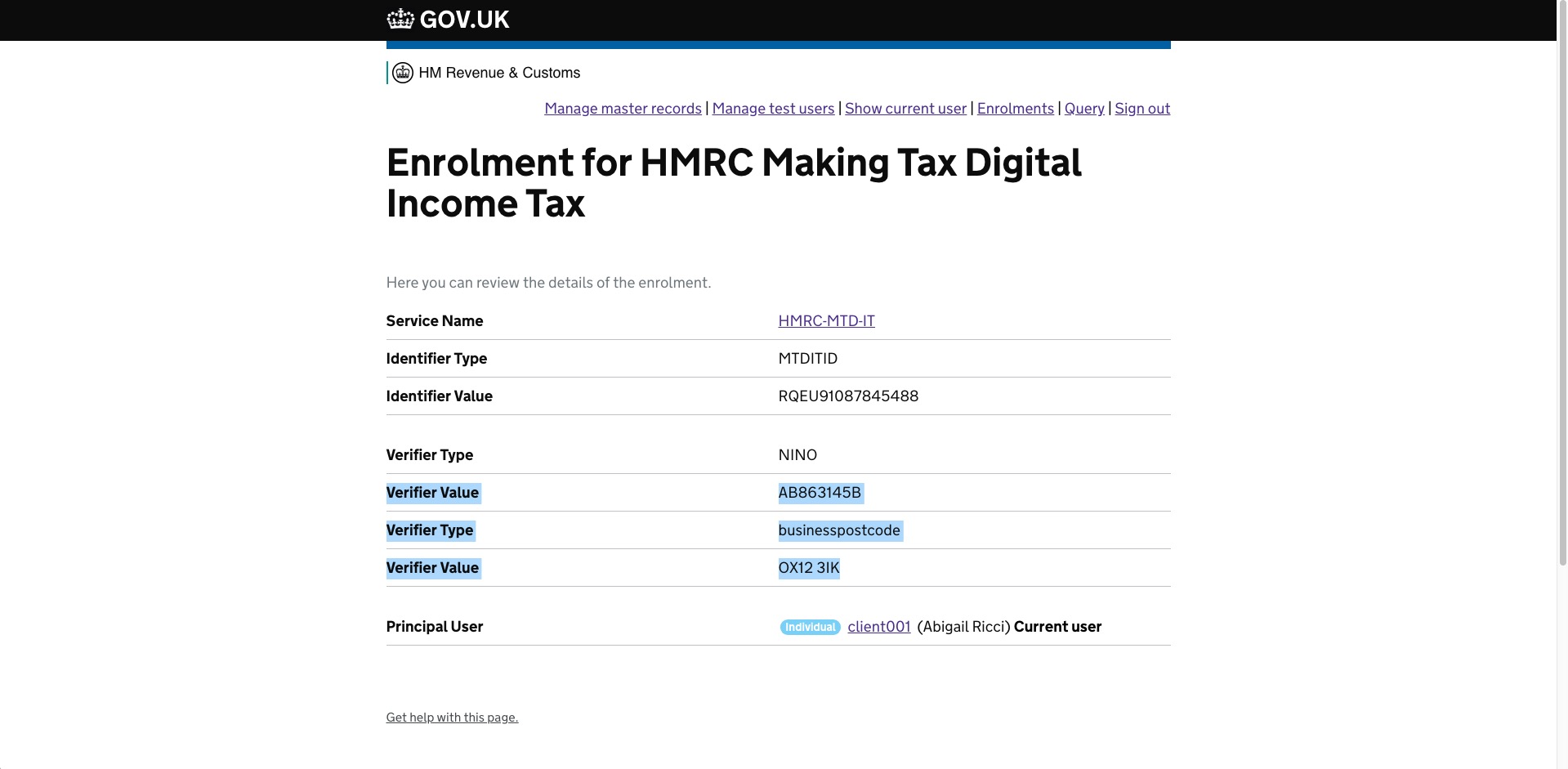

Click on Identifier value corresponding to HMRC-MTD-IT
- Verifier value = NINO to be used
- Verifier value = Postcode to be used

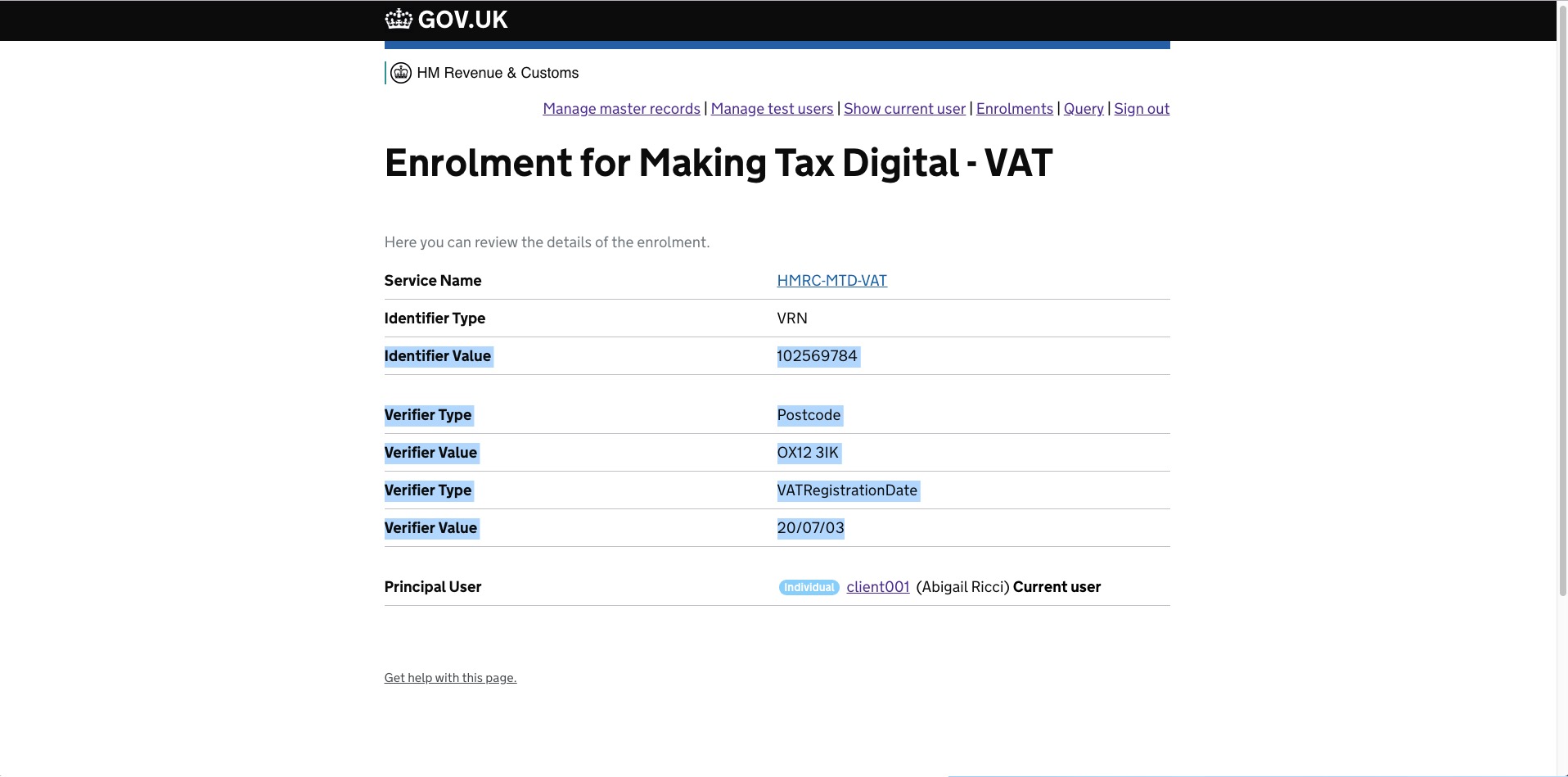

Click on client001 and click on identifier value corresponding to HMRC-MTD-VAT
- Identifier value = VRN to be used
- Identifier value = VATRegistrationDate to be used
  - Note that you will need to convert date from dd/mm/yy to yyyy-mm-dd
  - eg: 20/07/03 becomes 2003-07-03

Test data for MTD-IT

    {
        "service":[ "MTD-IT" ],
        "clientType": "personal",
        "clientIdType":"ni", 
        "clientId":"AB863145B",
        "knownFact":"OX1 3IK"
    }

Sample API call

curl -v -H "Accept: application/vnd.hmrc.1.0+json" -H 'content-type: application/json' -H "Authorization: Bearer 5946713224d32eab9615c47966a3b4" --data '{"service": ["MTD-IT"], "clientType": "personal", "clientIdType": "ni", "clientId": "AB863145B", "knownFact": "OX12 3IK"}' https://test-api.service.hmrc.gov.uk/agents/NARN0238758/invitations

Test data for MTD-VAT

Please note: clientType for MTD-VAT can be either personal or business.

    { 
        "service":[ "MTD-VAT" ], 
        "clientType":"business"
        "clientIdType":"vrn", 
        "clientId":"102569784", 
        "knownFact":"2003-07-20"
    }

curl -v -H "Accept: application/vnd.hmrc.1.0+json" -H 'content-type: application/json' -H "Authorization: Bearer 5946713224d32eab9615c47966a3b4" --data '{"service": ["MTD-VAT"], "clientType": "business", "clientIdType": "vrn", "clientId": "102569784", "knownFact":"2003-07-20"}' https://test-api.service.hmrc.gov.uk/agents/NARN0238758/invitations

Create agent-client relationship in agents-external-stubs

After creating an invitation you will need to call Get Invitation by Id and get the "clientActionUrl

Request

curl -v -H "Accept: application/vnd.hmrc.1.0+json" -H "Authorization: Bearer 5946713224d32eab9615c47966a3b4" https://test-api.service.hmrc.gov.uk/agents/NARN0238758/invitations/AOXB1SJTD9LXR

Json Response Body

    {
        "_links":{
            "self":{
                "href":"/agents/FARN0001132/invitations/AOXB1SJTD9LXR"
        }
    },
        "created":"2019-02-07T10:50:58.844Z",
        "expiresOn":"2019-02-17T00:00:00.000",
        "arn":"FARN0001132",
        "service":[
            "MTD-IT"
        ],
        "status":"Pending",
        "clientActionUrl":"https://test-www.tax.service.gov.uk/invitations/personal/69BGN7CF/agency-test"
    }

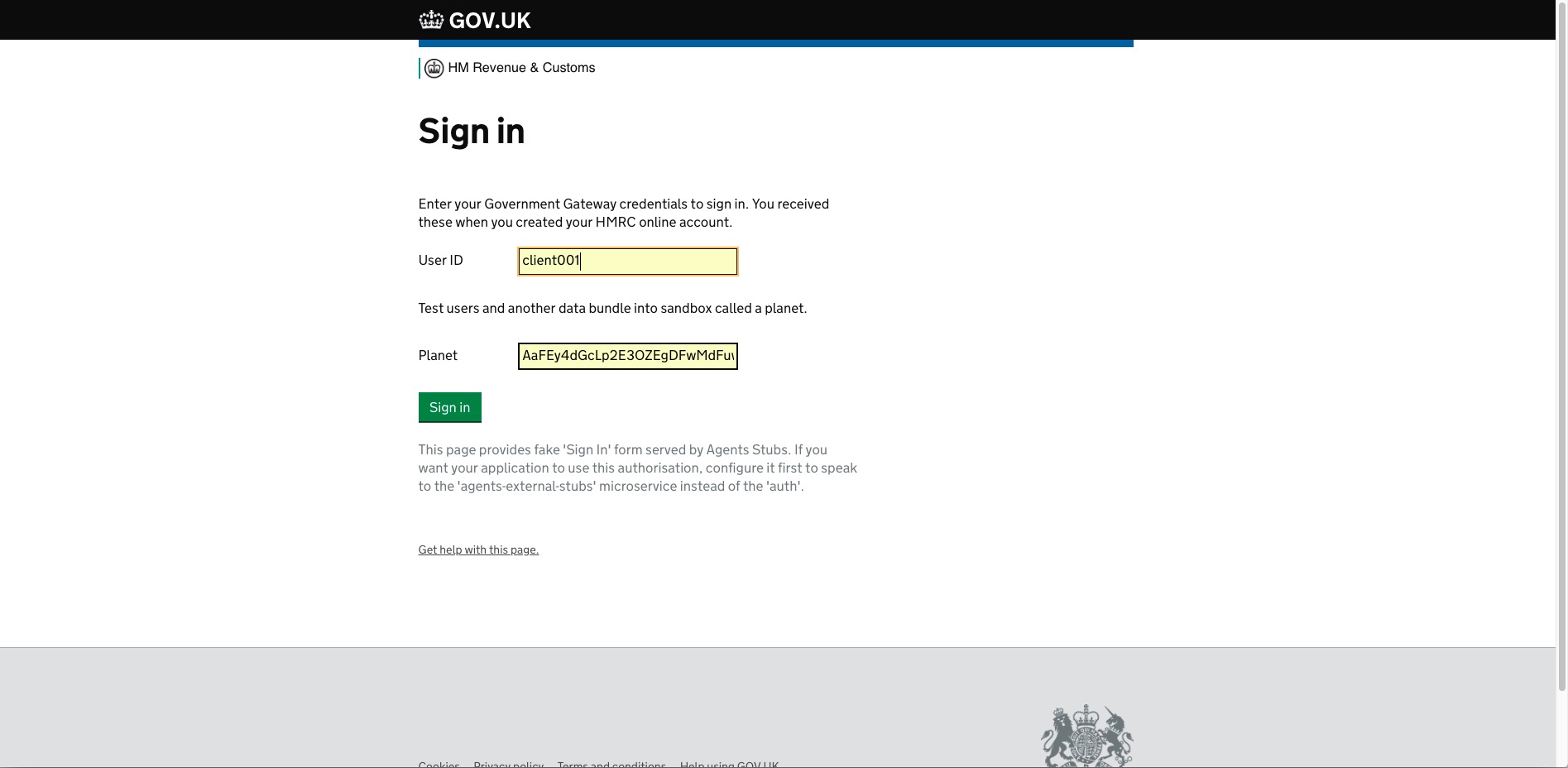

Make sure you are signed in with the client (client001) and planetID = hmrc

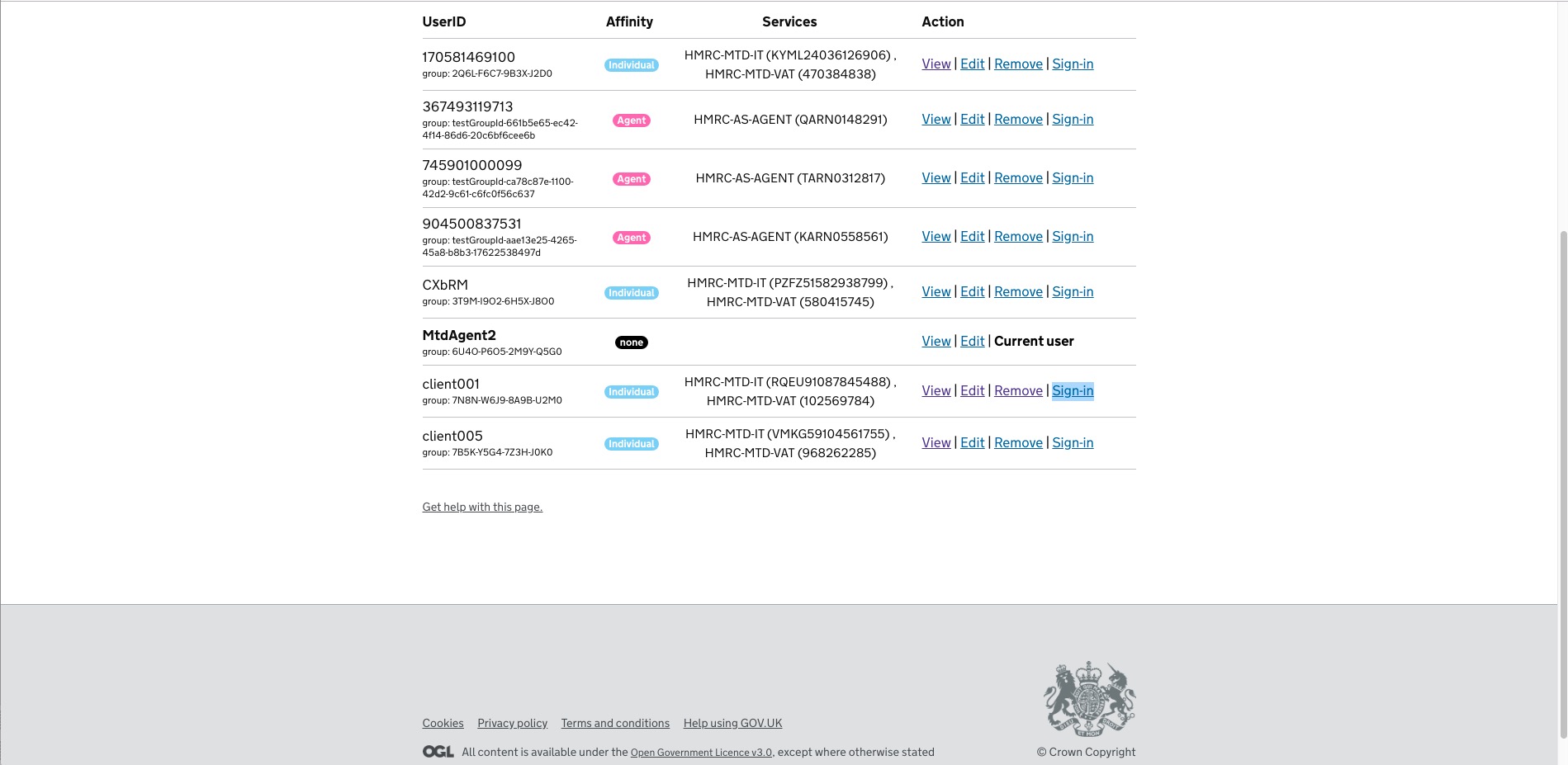

If you are already inside the stubs, you can sign-in to the client by clicking sign-in corresponding to client001

Steps

Navigate to https://test-www.tax.service.gov.uk/invitations/<clientType>/<uid>/<agent-name> in a separate tab

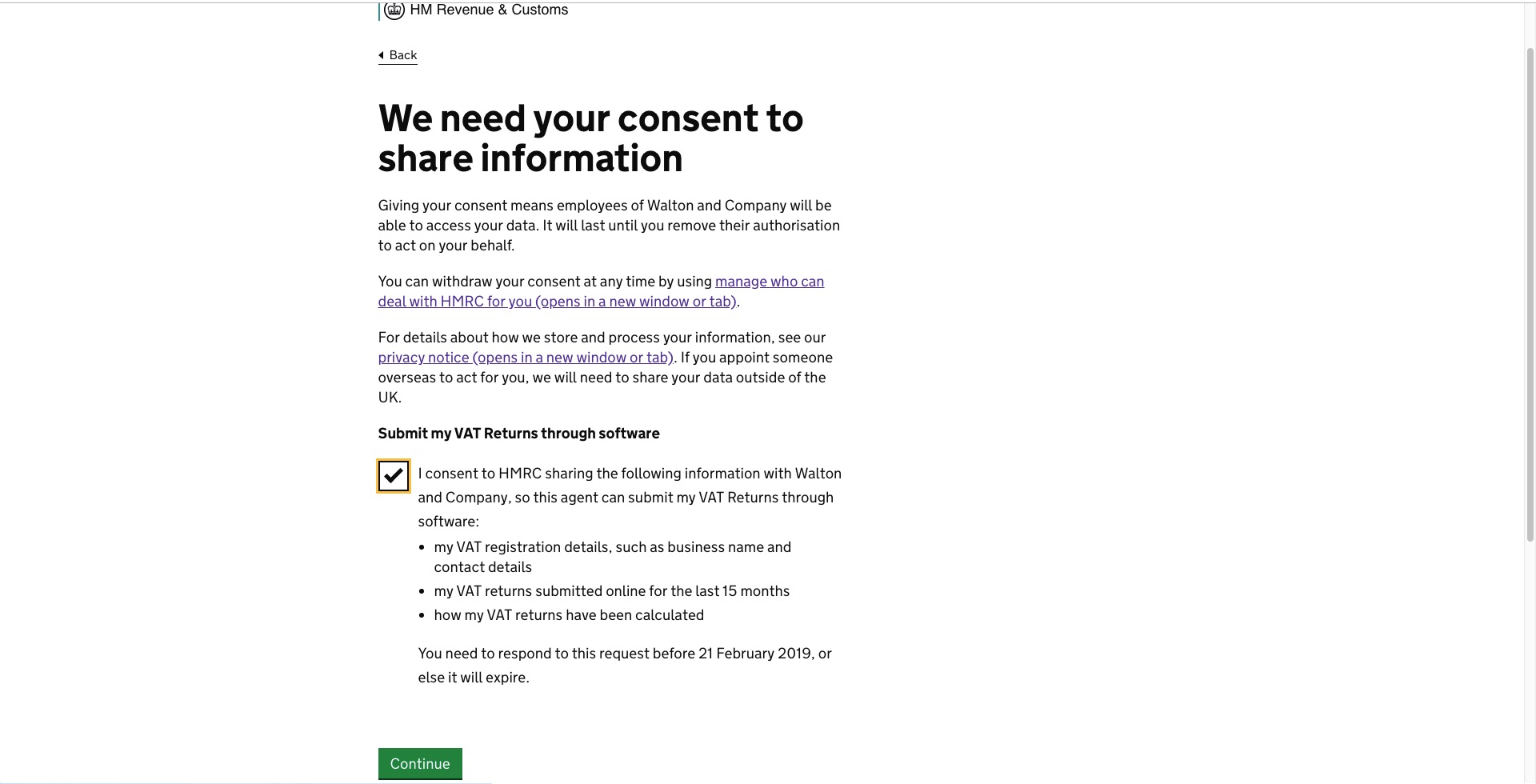

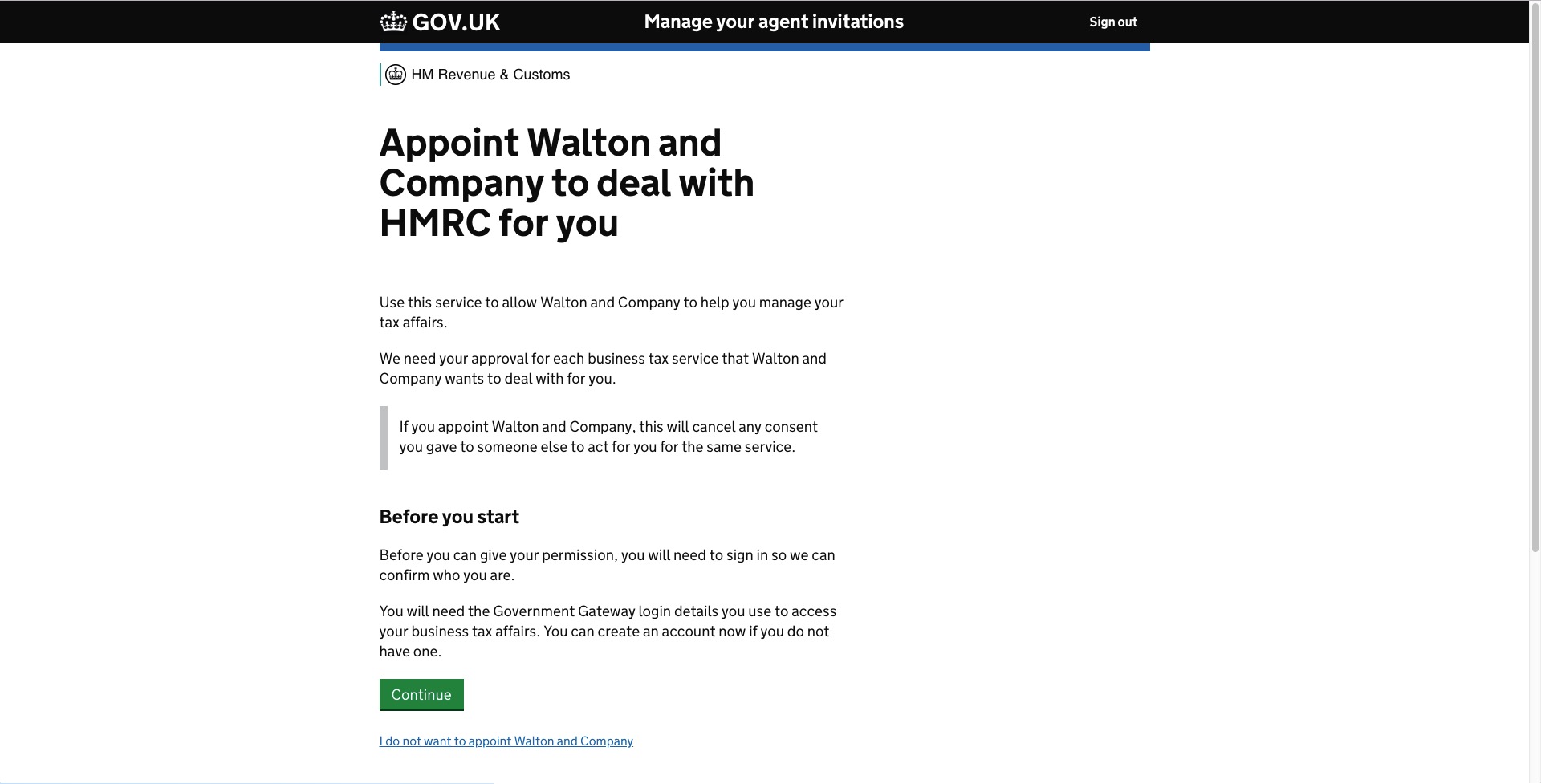

Click continue and you will be served with the consent page
Select check box for VAT and click Continue

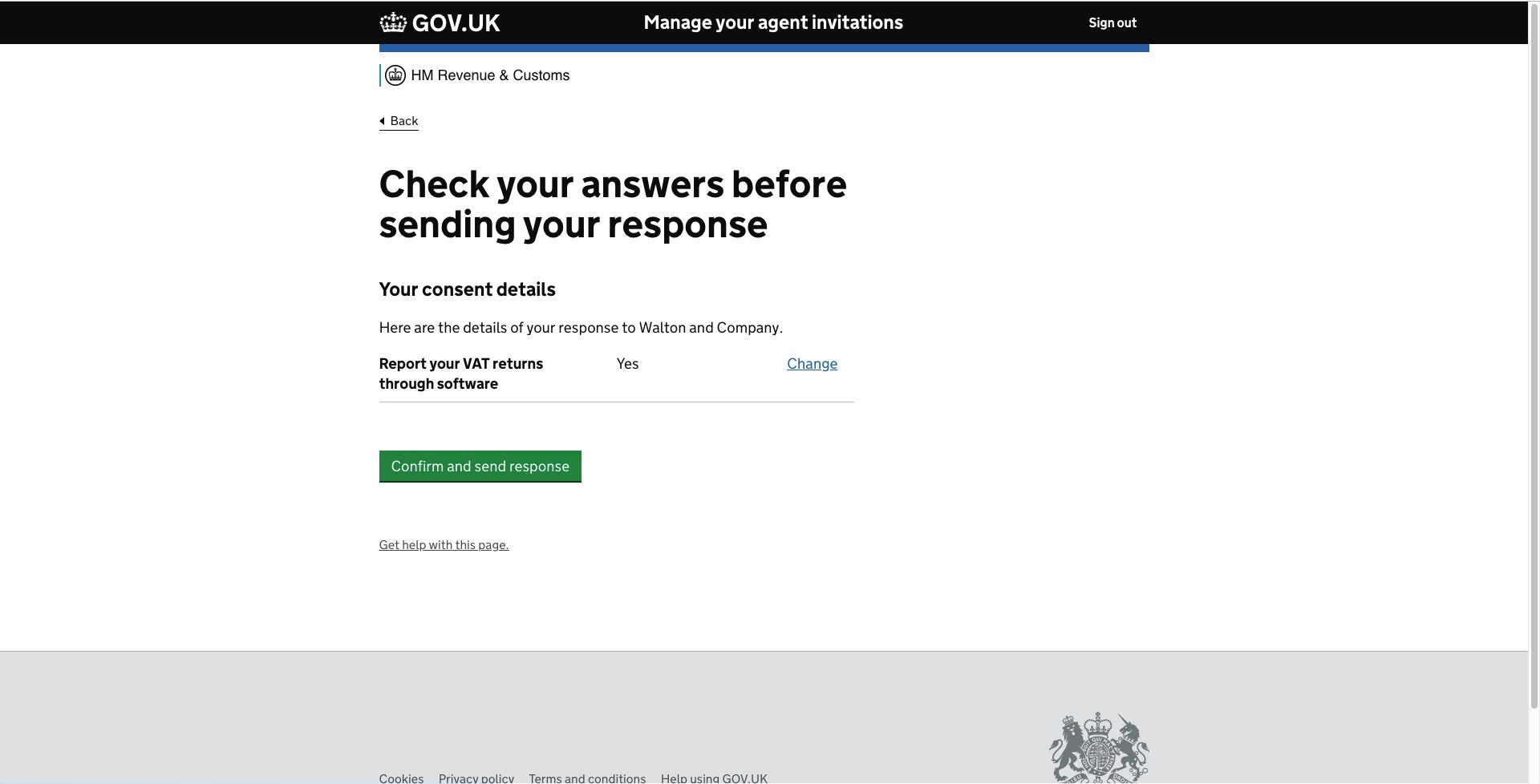

You will be served with check your answers page
Click "Continue and send response"

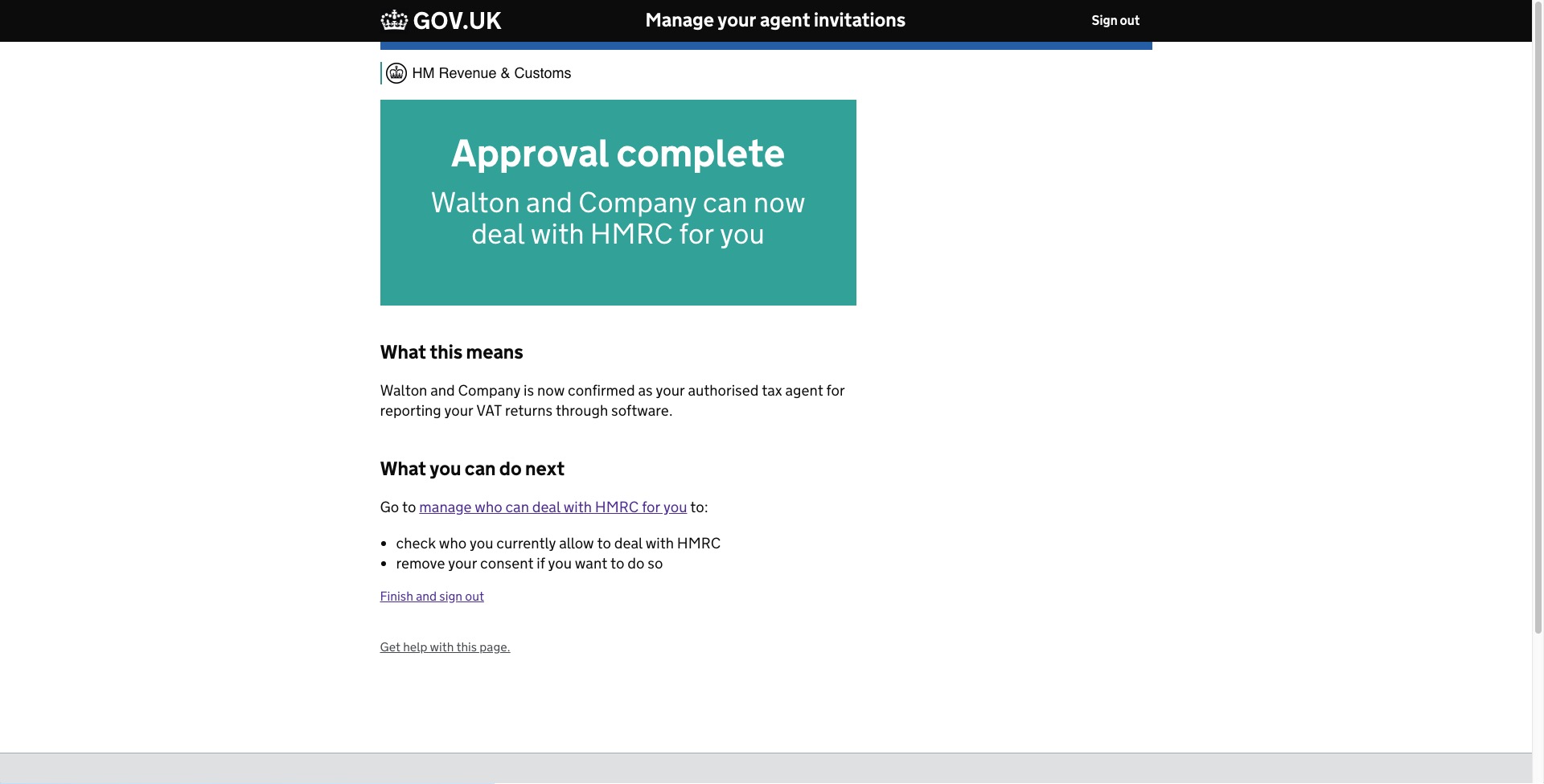

Success page should be served

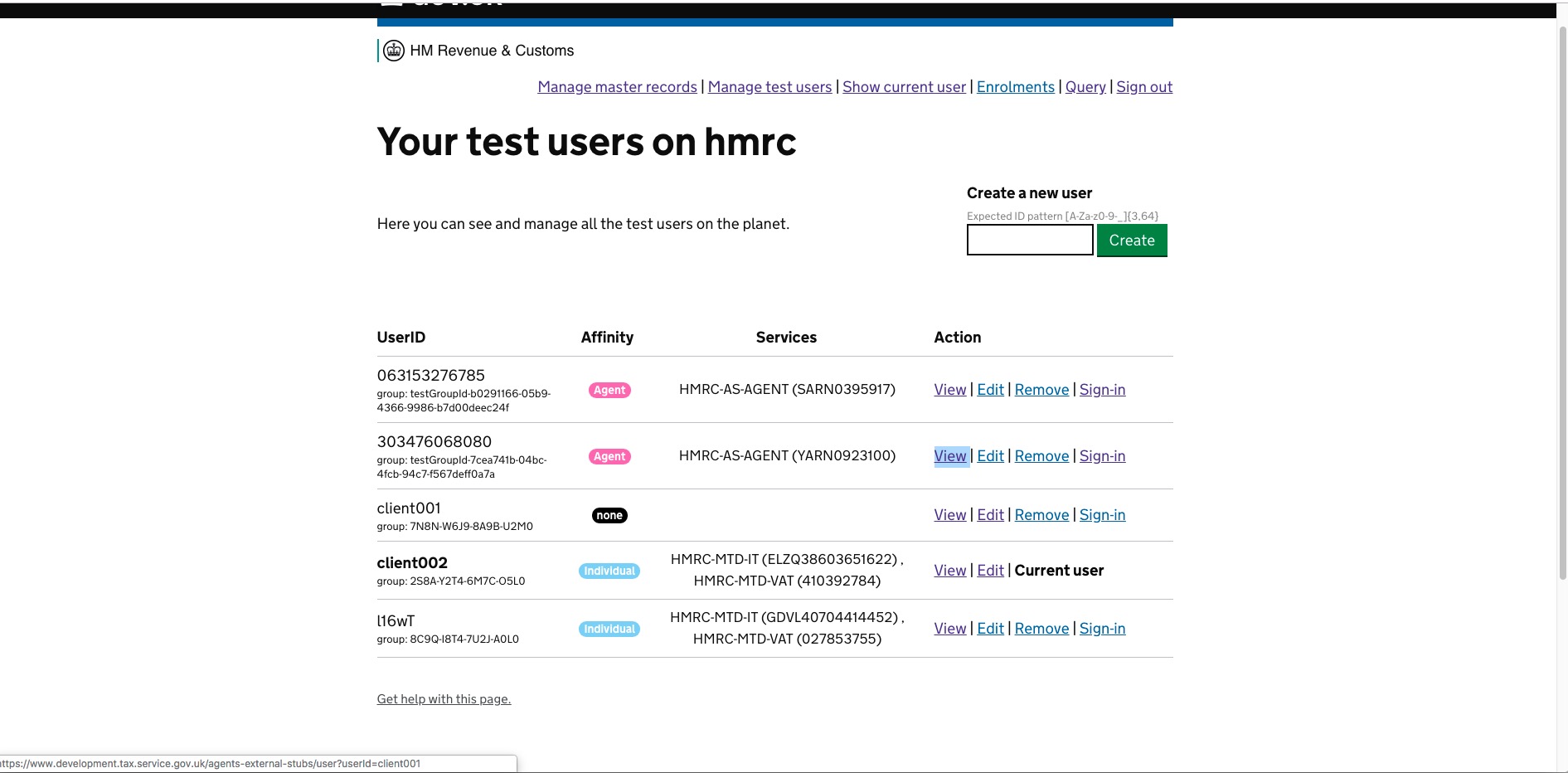

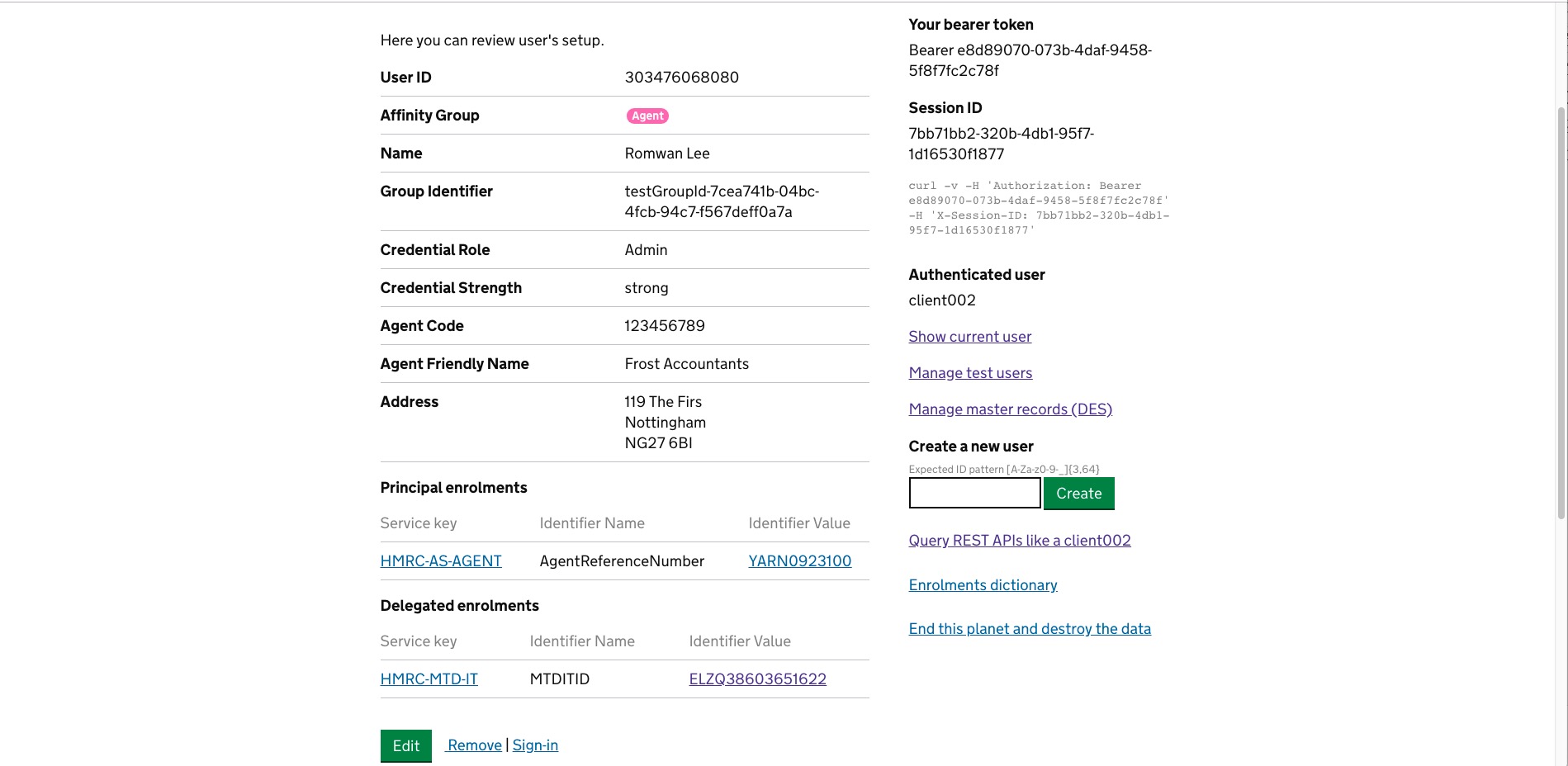

Go back to agents-external-stubs and click on “view” corresponding to the agent used to create an invitation.
You should be able to see the relationship successfully created with the client in the Delegated enrolment section.

Now you use that test data in get Relationship API

Test data for MTD-IT

{
 	"service":[ "MTD-IT" ],
 	"clientIdType":"ni",
 	"clientId":"AB863145B",
     "knownFact":"OX1 3IK"
}

Sample API call for check relationship (by providing bearer of the corresponding agent)

curl -v -H "Accept: application/vnd.hmrc.1.0+json" -H 'content-type: application/json' -H "Authorization: Bearer 5946713224d32eab9615c47966a3b4" --data '{"service": ["MTD-IT"], "clientIdType": "ni", "clientId": "AB863145B", "knownFact": "OX12 3IK"}' https://test-api.service.hmrc.gov.uk/agents/NARN0238758/relationships
